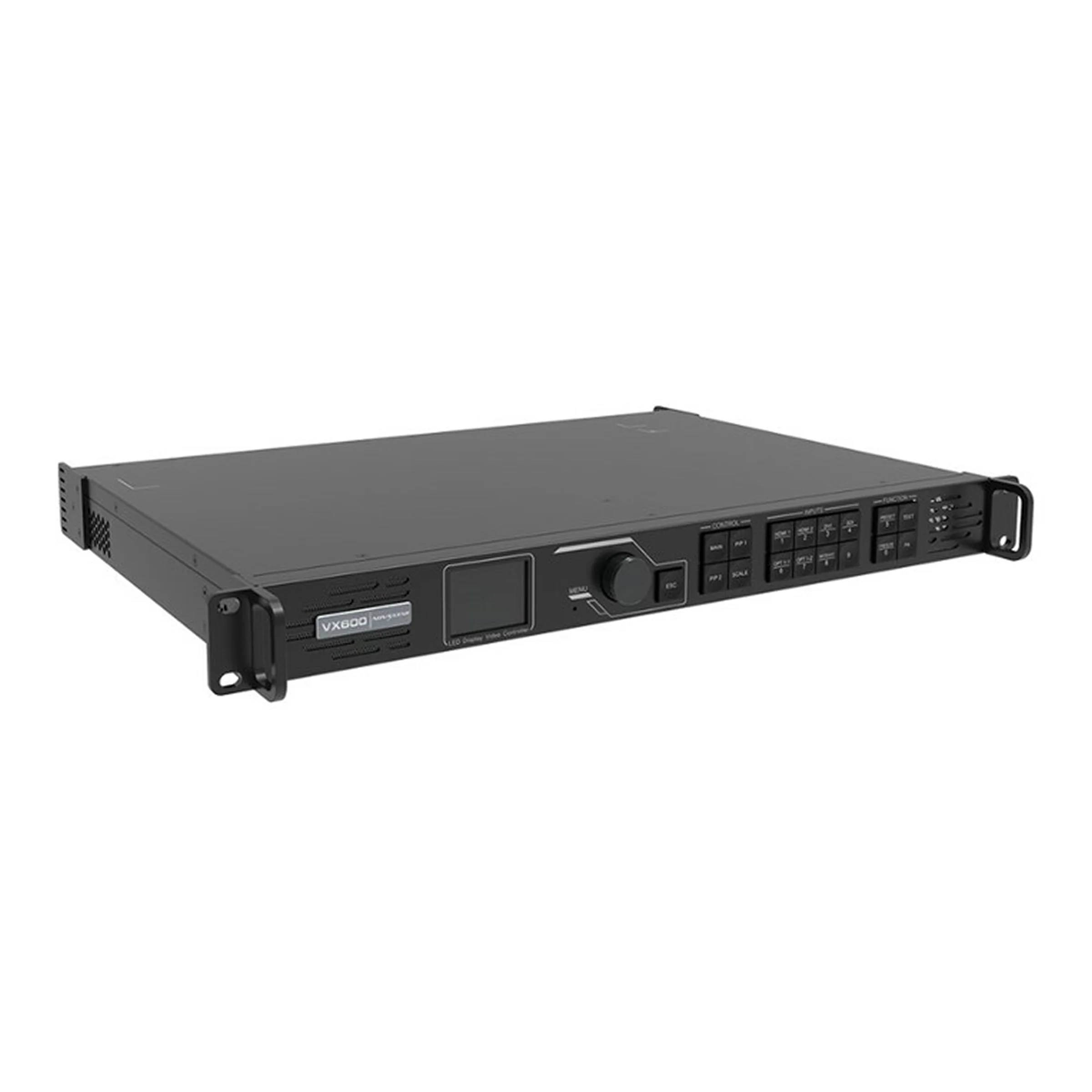

NovaStar VX600 LED Video Wall Controller and Processor

NovaStar VX600 LED Video Wall Controller and Processor

The NovaStar VX600 is a powerful all-in-one LED video wall controller and processor designed for professional LED display applications that require high performance, flexibility, and reliability. By combining video processing and LED control into a single unit, the VX600 simplifies system architecture while delivering outstanding image quality and stable operation for both fixed installations and rental environments.

With six Gigabit Ethernet output ports, the VX600 can drive up to 3.9 million pixels, supporting LED screens with a maximum width of 10,240 pixels and a maximum height of 8,192 pixels. This makes it an ideal solution for ultra-wide, ultra-high-resolution, and fine-pitch LED displays used in corporate, broadcast, and live event settings.

Advanced Performance & Processing

The VX600 supports multiple operational modes, including Video Controller Mode, Fiber Converter Mode, and Bypass Mode, providing flexible deployment options for various system designs. With support for up to 3 layers, low latency processing, and output synchronization, the VX600 ensures smooth, real-time performance—perfect for live production environments.

Comprehensive Connectivity

The controller supports a wide range of professional input and output interfaces, ensuring seamless compatibility with modern AV systems:

• HDMI 1.3 × 2 (with LOOP)

• DVI (HDMI 1.3) × 2 (with LOOP)

• 3G-SDI × 1 (with LOOP)

• Gigabit Ethernet Outputs × 6

• 10G Optical Port × 1

• HDMI 1.3 Monitor Output × 1

• Genlock IN & LOOP

• USB A (Cascading), USB B (PC), RJ45 (PC Control)

Superior Image Quality

The VX600 delivers exceptional visual performance with advanced features such as:

• Stepless scaling

• 3D display support

• Mosaic input

• Audio input/output

• Low latency

• High-precision synchronization

These technologies ensure sharp images, accurate color reproduction, and smooth motion across the entire LED screen.

Key Features

• All-in-one LED video wall controller and processor

• Drives up to 3.9 million pixels

• Maximum output resolution: 10,240 × 8,192 pixels

• 6 Gigabit Ethernet output ports

• Supports 3 layers

• Multiple working modes: Video Controller, Fiber Converter, Bypass

• Built-in LCD menu with intuitive controls

• 3-year manufacturer warranty

Power & Physical Specifications

• Power Input: 100–240 VAC

• Power Consumption: 28W

• Current: 1.5A

• Dimensions: 2″ × 13.9″ × 19″

• Weight: 8.9 lbs

Ideal Applications

• LED video walls

• Corporate and control room displays

• Broadcast and studio environments

• Rental staging and live events

• Fine-pitch LED screen installations

The NovaStar VX600 delivers a perfect balance of performance, flexibility, and reliability—making it a trusted solution for professional LED display systems that demand precision and stability.
